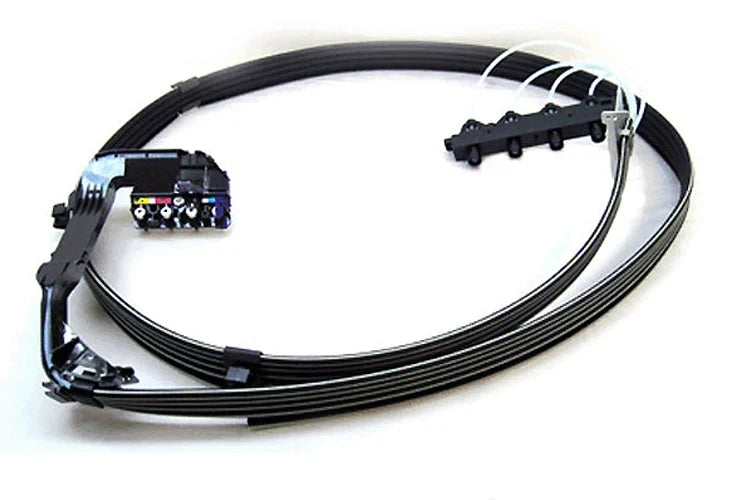

"From our conversation from today. .. the printer printed 2-3 pages then just cut off 1/4 of the next page. .. do you think it's air in the line?   HP. 500 Thx. Robert"If a color simply faded out, yes, it is air in the ink tube system.  Replace the ink tube system. To address the immediate issue of air trapped in the printheads, take a look at the printhead recovery kit.

"Before I purchase the belt kit #C7770-60014-K from your online store… I was wondering if we should be prepared to replace any other items as a “overhaul” on the 7 year old plotter? We don’t print daily.  The machine may be used once a week at best for print one or two black & white AutoCAD 2D line drawings.  No photos or images are printed. Any ideas on the life expectancy of the ink tubes?" Ink tubes are usually ok until they leak ink or let air in.  If you are not experiencing either of those problems, the tube system...

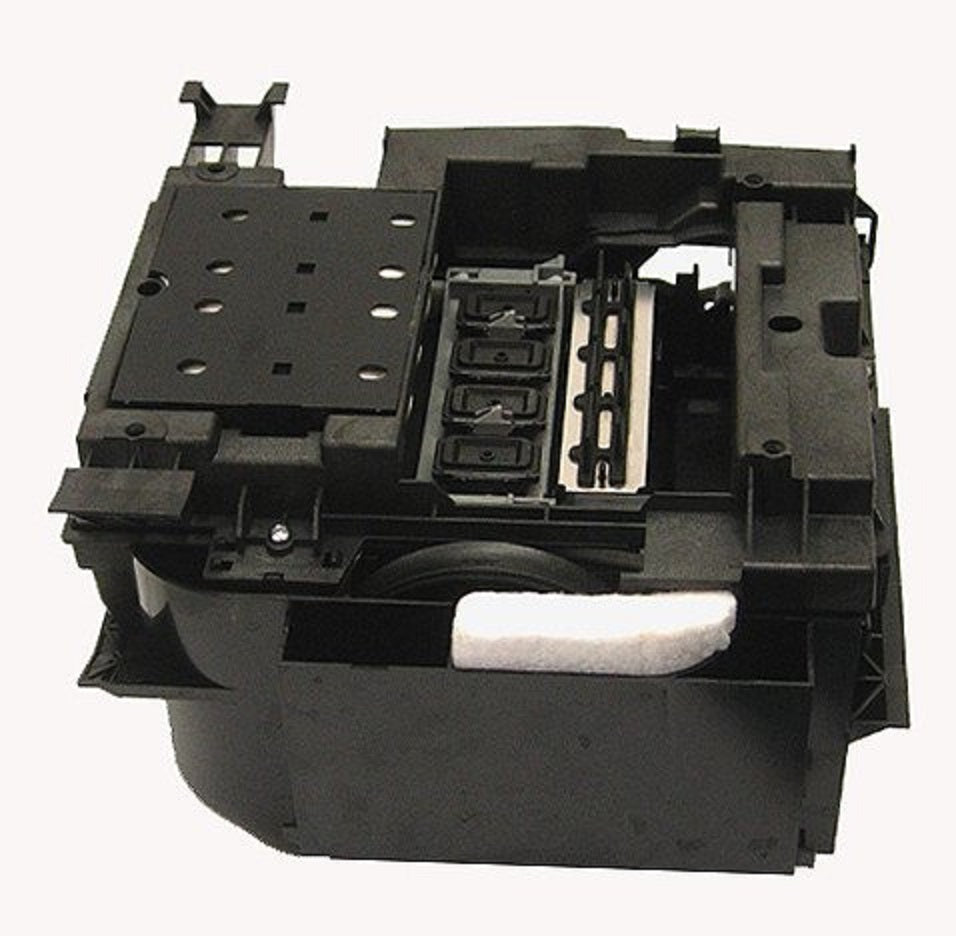

"Thank you for your wonderful video on Youtube on how to replace the belt. I ordered the belt from LPS and it arrived yesterday and needless to say I spent last night putting it in. With the help from your video I managed to replace it and put the machine back together again.  However, as soon as I plugged it in, and the machine turned on, the carriageway tried to make a pass over the service station but came to a stop and error message 20:10 came up on the screen. I do know you mentioned in your video that...

"I am trying to install the service station, and for whatever reason, the screw holes aren't lining up. Is there supposed to be a space in between the part and the machine? Putting the service station back into the plotter can be a little tricky the first time." Hold the SS under the SS bracket and then go straight up and then in toward the frame.  There is a lip on the front edge of the SS that has to ride on top of a plastic ledge on the bracket.  When it is in correctly, it will be against the...

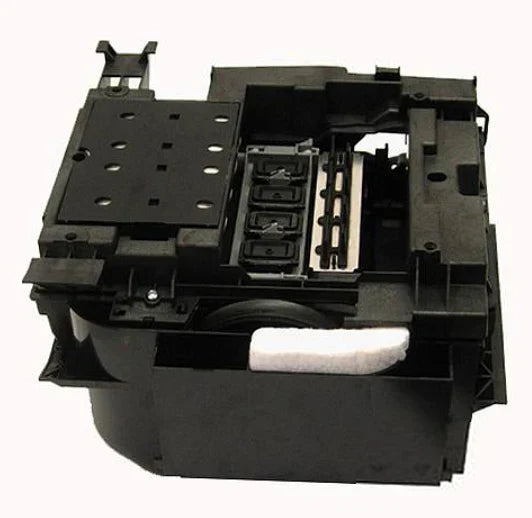

"Hi!  I just got a new service station from you.  Do you have a video or instruction sheet for the installation? Thanks! John"Here is a link to the video procedure.  The instruction for replacing the Designjet 500 service station are in the service manual, starting on page 8-52.  The service manual can be downloaded from Designjet 500, 800 Service Manual. If the carriage is locked over the service station, rotate the white plastic gears on the lower right of the service station until the carriage is free. Let me know if I can be of any further help. Bob
