HP DESIGNJET Z2100, Z3100, Z3200 Belt Kit (44" plotters)

  • $ 9900

HP Designjet Z2100 / Z3100 Carriage Belt Kit 44"


LPS Brand Designjet Belts are the ONLY Belts Made in the USA - The Best in the World
Lifetime Warranty


BEFORE YOU ORDER: Please make sure you select the right length of belt. Although this belt is for a 44-inch machine, the actual length of the belt is longer than 44 inches. If your machine has a maximum print width of 24", you need the "24-inch" belt.

All LPS brand belts are High Density Polyurethane and Kevlar, and are the only Designjet belts made in the USA.

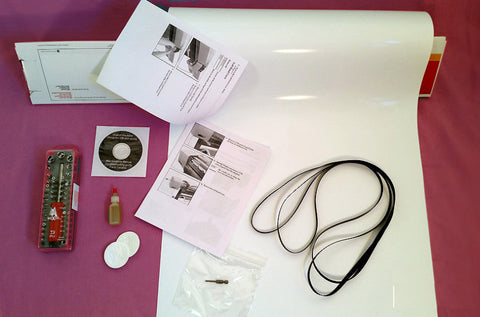

The kit has everything you need to do the job right:

1 Carriage Belt (Y-axis) Q6659-60175
(Click here for LPS belt specifications)
2 Non-evaporating synthetic oil for the rails
3 39 Piece Specialty Tool Kit
4 Media required by HP for Calibration
5 Illustrated belt replacement and plotter calibration directions
6 Service Manual with Illustrated Replacement Instructions, Parts List, Error Codes, & more (CD)
7 Toll Free Phone Support if Needed
Free Ground Shipping - USA only

Illustrated, step-by-step instructions take you from cover removal to full repair of your plotter. All specialty tools necessary for the task are included in the kit. The tools can be used for future repairs as well.

1. How difficult is it to replace the carriage belt?
If you have average mechanical skills, and the instructions are followed, most people can replace the belt and calibrate the printer without calling for technical assistance. If you have apprehensions about doing the replacement yourself, perhaps you can find another person with technical skills to help you.

2. How long will it take to replace the belt?
An experienced technician can do the work in less than an hour. Allow yourself 2 to 4 hours for the first time through.

NASA, JPL, The Goddard Space Center, and many universities buy LPS belt kits. They trust us and you can too.

Designjet Z2100 / Z3100 44" belt kit

We Also Recommend

Customer Reviews

Based on 4 reviews
HP DesignJet Z2300 (44" Plotter) Belt Kit

Received the much needed replacement belt with tools and instructions on 8 Dec 2017 at our overseas location. The kit was packed properly and arrived in good condition. The new belt was installed and our printer-plotter was operational on 10 Dec 2017. We definitely will consider ordering from your store in the future. Thank you for your timely service.

Great kit!

Came with everything I needed to replace a belt. It took a bit of time and the instructions were generic tear-down instructions, but they helped. We now have a working printer for $100.

Excellent Kit!

This kit included everything I needed as well as the great digital manual to assist my in understanding how to repair my printer. The associated video made explained everything in great detail and cut down a lot of the unnecessary removal of parts. Will recommend this kit to anyone with this printer.

perfect delivery of ordered items

hi thank you for the delivery. everything is exactly what i ordered.
hope we can do business together again.
thank you very much.
greetings from Switzerland.
