HP Designjet T790, T795, T1300 24" Carriage Belt CQ305-60016

Part number: CQ305-60016

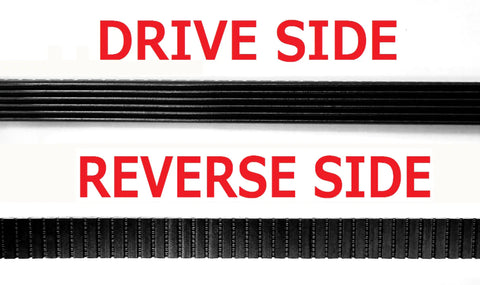

24-inch Designjet T790 / T795 / T1300 replacement carriage belt. LPS brand belts are made in the USA from DuPont Kevlar-reinforced, high-density polyurethane. They are precision manufactured and self-lubricating for the best image quality.

At a glance

• Condition: New, LPS brand
• Warranty: Lifetime warranty

Fits

• HP Designjet T790 24-inch
• HP Designjet T795 24-inch
• HP Designjet T1300 24-inch

Symptoms this fixes

Common signs that the belt needs replacing:

• System error 86:01 (a worn belt is the main cause on every Designjet)

What's included

• 1 LPS carriage belt

Not included

Belt tensioner. This listing is the belt only.

Note: Choose the belt by the maximum print width of your printer. The belt itself is longer than the print width, so a 24-inch printer uses the "24-inch" belt even though the belt measures more than 24 inches.

Note: When you replace the belt, or remove the carriage for any reason, be careful not to damage the plastic belt-retention posts on the carriage. If a post breaks, the carriage repair clip fixes it without replacing the carriage.

Need the tools, rail oil and calibration media too? See the Designjet T790 / T795 / T1300 24-inch belt kit.

Video and step-by-step guide

• Designjet T770 / T1200 / T790 / T1300 belt replacement video

Installation

With average mechanical skills you can replace the belt and calibrate the printer in 1 to 3 hours. Allow 2 to 4 hours the first time through.

The replacement procedure can be found in the "removal and installation" section of the service manual: HP Designjet T790 / T1300 / T2300 service manual.
