Designjet Z3200 Formatter Board & Hard Disk Drive HDD

$ 283⁵⁰
Save $ 31

✉ Have a question about this part? Email us or call 760 749 1580.

✓ Same-day shipping from the USA
✓ Free technical support
✓ We accept all major credit cards and PayPal
✓

Part number: Q6718-67020 (Rev B), Q6718-60047 (Rev A) (also Q5670-60021, CK837-67026)

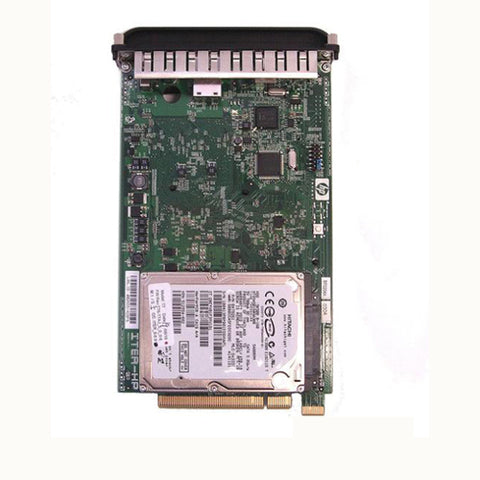

SATA-type formatter board and hard disk drive for all versions of the HP Designjet Z3200, 24-inch and 44-inch, including PostScript.

At a glance

Condition: Refurbished with the newest firmware (TR12-RB_14.0.0.1)
Warranty: 12 months
Core refund: $25.00 back when you return your old formatter. Final price after refund: $258.50 (Rev A) or $269.50 (Rev B)

Fits

HP Designjet Z3200 24-inch and 44-inch (including PostScript)

Need help diagnosing?

Not sure if your symptom is caused by this part? Contact our technical support experts at sales@lpscomputer.com or call 760 749 1580.

Options

Revision A: the formatter has no external LED lights
Revision B: the formatter has 3 external LED lights

What's included

SATA formatter board
Hard disk drive with virgin firmware
Prepaid return shipping label for your old formatter

Note: Please confirm which revision formatter your printer needs before ordering.

Note: Truly plug and play: no tools or setup needed.

Note: The hard disk comes with fresh firmware and has never been installed in a printer. A formatter and hard disk take on the ID and password of the first printer they are installed in, so a used formatter or drive from another printer will not work.

Core return

Just send back your old formatter with the prepaid label and you will get the refund.

Installation

The replacement procedure can be found in the "removal and installation" section of the service manual: HP Designjet Z2100 / Z3100 / Z3200 service manual.
