C7769-60182 Designjet 500 / 510 / 800 Carriage Belt (for 24" Plotters)

  • $ 4250

Full Designjet 500/800 parts list

HP Designjet 500, 510, 800 Belt For 24" Print Width Plotters



BEFORE YOU ORDER: Please make sure you select the right length of belt. Although this belt is for a 24-inch machine, the actual length of the belt is longer than 24 inches. If your machine has a maximum print width of 42", you need the "42-inch" belt.

LPS Brand Designjet Belts are the ONLY Belts Made in the USA
Lifetime Warranty

Click here to view full repair kit.
Designjet 500 belt replacement video

A worn belt is one possible cause of System Error 86:01

HP Designjet 800 and HP Designjet 500 carriage belt connects the carriage to the motor. It runs the length of the plotter and moves the carriage left and right. This belt is for the 24" print width HP 800 plotter and HP 500 plotter.

*Note: Inches refer to maximum width of paper plotter uses, not length of the belt itself*

Compatible with:

  • HP DesignJet 500 Printer - 24” Model (P/N C7769B)
  • HP DesignJet 500PS Printer - 24” Model (P/N C7769C)
  • HP DesignJet 500Plus – 24” Model (P/N C7769F)
  • HP DesignJet 500Mono – 24” Model (P/N C7769E)
  • HP Designjet 510 – 24” Model (P/N CH336A)
  • HP Designjet 510ps – 24” Model (P/N CJ996A)
  • HP DesignJet 800 Printer - 24” Model (P/N C7779B)
  • HP DesignJet 800PS Printer - 24” Model (P/N C7779C)

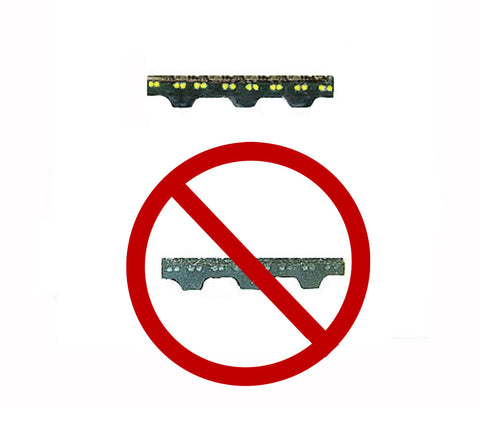

All LPS brand belts are High Density Polyurethane and DuPont Kevlar, and are
the only Designjet belts made in the USA.

Note: The price of this part has been lowered by removing the plastic tensioner wedge. The tensioner rarely or never goes bad from wear.
