HP Designjet T790, T795, T1300 24" Carriage Belt Kit CQ305–60016
BEFORE YOU ORDER: Please make sure you select the right length of belt. Although this belt is for a 24-inch machine, the actual length of the belt is longer than 24 inches. If your machine has a maximum print width of 44", you need the "44-inch" belt.

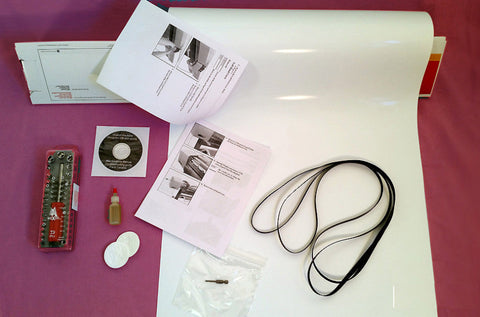

1 Carriage Belt (Y-axis) CQ305–60016
(Click here for LPS belt specifications)
2 Non-evaporating synthetic oil for the rails
3 39 Piece Specialty Tool Kit
4 Media required by HP for Calibration
5 Illustrated belt replacement and plotter calibration directions
6 Service Manual with Illustrated Replacement Instructions, Parts List, Error Codes, & more (CD or USB drive --your choice)
7 Carriage Repair Clip
8 Toll Free Phone Support if Needed
9 Free Ground Shipping
Illustrated, step-by-step instructions take you from cover removal to full repair of your plotter. All specialty tools necessary for the task are included in the kit. The tools can be used for future repairs as well.
When replacing the belt, or removing the carriage from the printer for any reason, be careful not to damage the plastic belt-retention posts on the carriage. If the post is broken on your carriage, you can fix the carriage using this part.
1. How difficult is it to replace the carriage belt?
If you have average mechanical skills, and the instructions are followed, most people can replace the belt and calibrate the printer without calling for technical assistance. If you have apprehensions about doing the replacement yourself, perhaps you can find another person with technical skills to help you.
2. How long will it take to replace the belt?
An experienced technician can do the work in less than an hour. Allow yourself 2 to 4 hours for the first time through.
NASA, JPL, The Goddard Space Center, and many universities buy LPS belt kits. They trust us and you can too.
