HP Designjet Z9+, Z6, Z5600 44" Carriage Belt CH538-67018

Part number: CH538-67018

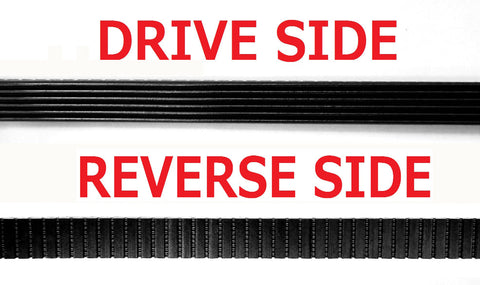

44-inch Designjet Z6 / Z9+ / Z5600 replacement carriage belt. LPS brand belts are made in the USA from DuPont Kevlar-reinforced, high-density polyurethane. They are precision manufactured and self-lubricating for the best image quality.

At a glance

• Condition: New, LPS brand
• Warranty: Lifetime warranty

Fits

• HP Designjet Z6 44-inch
• HP Designjet Z9+ 44-inch
• HP Designjet Z5600 44-inch

Symptoms this fixes

Common signs that the belt needs replacing:

• System error 86:01 (a worn belt is the main cause on every Designjet)

What's included

• 1 LPS carriage belt

Not included

Belt tensioner. This listing is the belt only.

Note: Choose the belt by the maximum print width of your printer. The belt itself is longer than the print width, so a 24-inch printer uses the "24-inch" belt even though the belt measures more than 24 inches.

Need the tools, rail oil and calibration media too? See the Designjet Z6 / Z9+ / Z5600 44-inch belt kit.

Video and step-by-step guide

• Designjet T770 / T1200 / T790 / T1300 belt replacement video

Installation

With average mechanical skills you can replace the belt and calibrate the printer in 1 to 3 hours. Allow 2 to 4 hours the first time through.

The replacement procedure can be found in the "removal and installation" section of the service manual for your printer:

• HP Designjet T1700 / Z6 / Z9+ service manual
• HP Designjet Z2600 / Z5400 / Z5600 service manual
