HP DESIGNJET 5000, 5500 Carriage Belt Kit 60" Q1253-60066

$ 98¹⁰
Save $ 10

✓ Same-day shipping from the USA
✓ Free technical support
✓ Veteran-owned US company

Part number: Q1253-60066 (was Q1253-60021, C6095-60183)

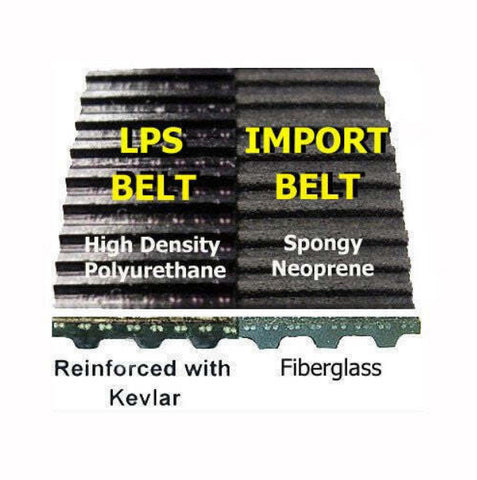

60-inch Designjet 5000 / 5500 complete carriage belt replacement kit with everything you need to do the job right. Illustrated, step-by-step instructions take you from cover removal to a fully calibrated printer, and the specialty tools can be used for future repairs. LPS brand belts are made in the USA from DuPont Kevlar-reinforced, high-density polyurethane. They are precision manufactured and self-lubricating for the best image quality.

At a glance

Condition: New, LPS brand
Warranty: Lifetime warranty on the belt

Fits

HP Designjet 5000 60-inch (C6095A / C6095V)
HP Designjet 5000PS 60-inch (C6096A / C6096V)
HP Designjet 5500 60-inch (Q1253A / Q1253V)
HP Designjet 5500PS 60-inch (Q1254A / Q1254V)

Symptoms this fixes

Common signs that the belt needs replacing:

System error 86:01 (a worn belt is the main cause on every Designjet)

Options

Service manual on compact disc
Service manual on USB drive (small extra charge)

What's included

LPS carriage belt

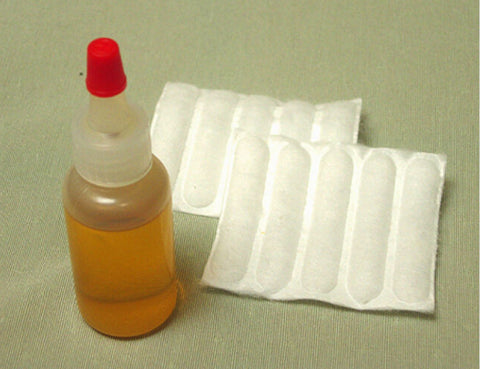

Non-evaporating synthetic oil for the carriage rails

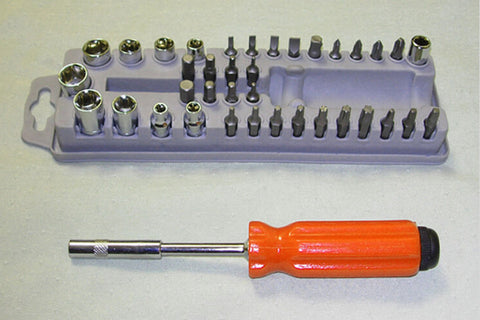

39-piece specialty tool kit

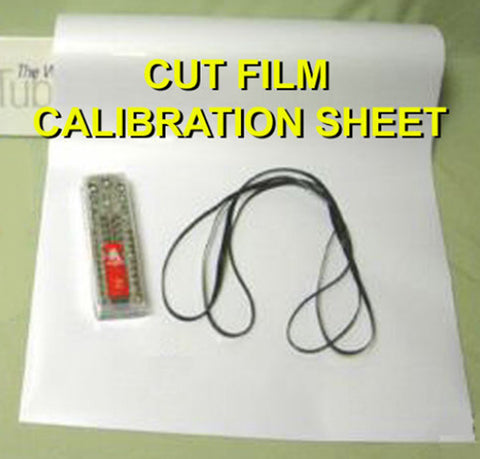

Photo gloss film required by HP for the calibration
Illustrated belt replacement and calibration directions
Complete service manual with removal and installation steps, parts list and error codes (CD or USB drive, your choice)

Note: Choose the belt by the maximum print width of your printer. The belt itself is longer than the print width, so a 24-inch printer uses the "24-inch" belt even though the belt measures more than 24 inches.

Video and step-by-step guide

Designjet 5000 / 5500 belt replacement guide

Installation

With average mechanical skills you can replace the belt and calibrate the printer in 1 to 3 hours. Allow 2 to 4 hours the first time through.

The replacement procedure can be found in the "removal and installation" section of the service manual: HP Designjet 5000 / 5500 service manual.

Returns

30-day return window. See our returns policy for details.
