Part number: C6090-69281 (also Q1251-60070, C6090-60281)

Refurbished carriage for the HP Designjet 5000 and 5500. The carriage carries the printheads and travels the length of the printer; the trailing cable and ink tube assembly attach to it.

At a glance

• Condition: Refurbished, live-tested
• Warranty: 12 months

Fits

• HP Designjet 5000 and 5000PS 42-inch (C6090A/V, C6091A/V)
• HP Designjet 5000 and 5000PS 60-inch (C6095A/V, C6096A/V)
• HP Designjet 5500 and 5500PS 42-inch (Q1251A/V, Q1252A/V)
• HP Designjet 5500 and 5500PS 60-inch (Q1253A/V, Q1254A/V)

Symptoms this fixes

System errors related to the carriage:

• Error ffff ffff 036000bd
• Error 01002D (primary cause: the trailing cable)
• Error 010041 (primary cause: the encoder strip)
• Error 06030C
• Error 06040C
• The printer boots to 70% and gets stuck (line sensor error)

Options

• 42-inch printer
• 60-inch printer

What's included

• Carriage with carriage PCA

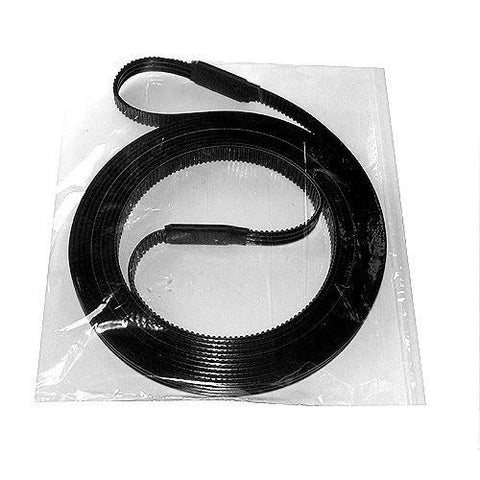

• New LPS carriage belt (lifetime warranty on the belt)
• Media cutter
• New edge detector lens, plus 4 spare lens covers

Not included

Plastic carriage PCA cover. Reuse the cover from your old carriage.

Note: No core return required.

Installation

The replacement procedure is in section 8-46 of the HP Designjet 5000 / 5500 service manual.

Returns

30-day return window. See our returns policy for details.
