C7769-40041 HP Designjet 500 / 800 Carriage Latch Repair Kit

$ 48⁹⁵

C7769-40041 HP Designjet 500 / 800 Printhead Cover | Carriage Latch Frame with Torx Bits

C7769-40041, C7769-69376, C7769-60381, C7770-60286

FREE SHIPPING FOR USA CUSTOMERS

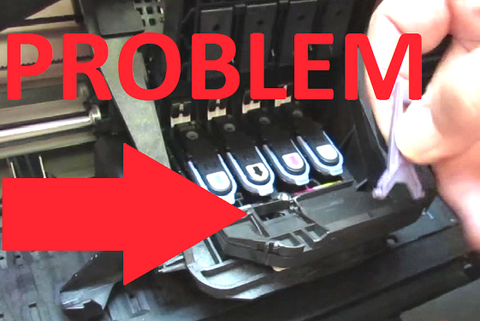

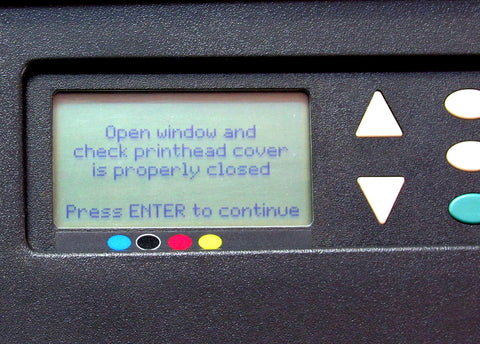

If your machine is telling you "Open window and check printhead cover is properly closed," the most likely cause is the upper frame on the ink tube system is cracked or broken. The printhead cover on the carriage locks into the lower latch in the ink tube system. If the lower latch is compromised, the machine will not function.

Watch the video tutorial for the repair procedure here.

Name: C7769-40041 HP Designjet 500 / 800 Carriage Latch Repair Kit
Brand: Hewlett-Packard
SKU: PARTS:C7769-40041-1
Price: 48.95 USD
Availability: InStock

If your ink tube system is leaking, or otherwise broken beyond repair, you can find the replacement ink tube systems here:

24" Ink Tube

42" Ink Tube

This replacement frame is designed by LPS. This kit includes:

Heavy-Duty Latch Frame --Built to LAST
Torx T-8 and T-15 bits required to perform the repair
Strip of black plastic tape to reinforce the lower frame, and contain ink tubes in their proper channels

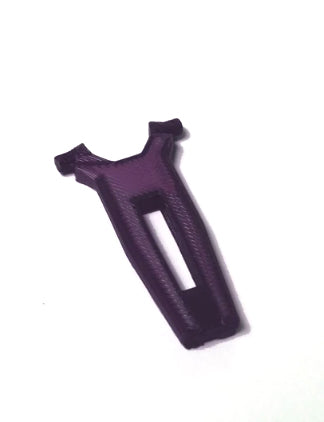

Purple Latch for the printhead cover (optional)

INCLUDES LIFETIME WARRANTY

For use with HP Designjet 500, 510, 800 24" and 42" printers.

We Also Recommend

HP DESIGNJET 500, 800 Carriage Belt Kit (42" plotters)

$ 92⁰⁰

C7769-60149 Designjet 500/510/800 Service Station $119.00 w/Exchange

$ 139⁰⁰ Save $ 50

C7770-60014 Designjet 500 / 800 42" Carriage Belt

C7770-60014 Designjet 500 / 510 / 800 Carriage Belt (for 42" Plotters)

$ 48⁵⁰

HP DESIGNJET 500, 800 Carriage Belt Kit (D-size 24")

HP DESIGNJET 500, 800 Carriage Belt Kit (for 24" Plotters)

$ 89⁵⁰

Designjet 1050C, 1055CM Ink Tube System $249 w/Exchange C6074-60342 , C6072-60145

$ 299⁰⁰

Awesome. Fit well and fixed the problem so the old machine can once again plot.

Ianwils (Australia)

The carriage latch repair kit for my HP Designjet 500 is a vast improvement to the original HP part, which is flimsy and prone to the clips breaking, the repair kit part is of a superior design and the UTube instuction video is perfect, very happy with every part of my dealings with your company. Delivery to OZ inside a week.

Carriage latch

Worked exactly like they said it would!

worked like a charm

Thanks for providing this solution

C7769-60149 Designjet 500/510/800 Service Station

Nice re-engineering as the part fit perfectly and works better than original.
