C7770-60286 Designjet 500 / 800 42” Ink Tubes Kit +REINFORCED

  • $ 21895

HP Designjet 500, 510, 800 42" Ink Tube System Kit, Refurbished, Reinforced

(Replaces C7770-60153, C7770-60251, C7770-60276, C7770-60286, C7770-60287)

$20 core value for your old unitpre-paid return label included in box (USA only)

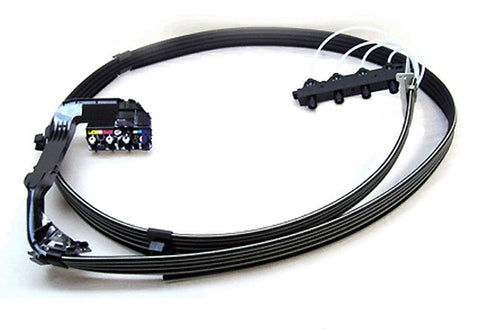

This is the ink delivery system for the Designjet 500 and 800 42" plotters.

These tube systems have been restored to new condition and have been leak tested to 2.5 times the normal operating pressure. These parts are guaranteed to perform as new and have a 1 year replacement warranty.

  • Ink tubes are chemically cleaned, flushed with pure water, and dried with filtered air

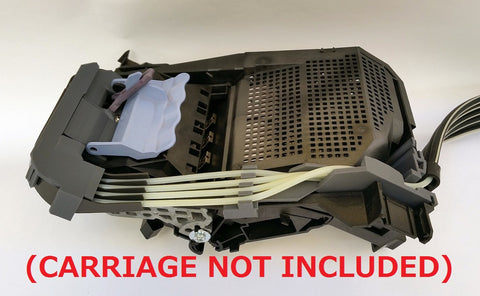

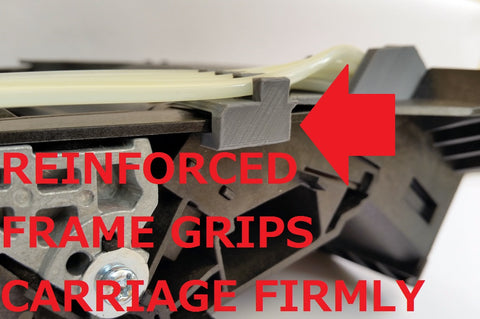

  • Reinforced with tough plastic frames (reinforced version only)
  • The tube assembly is pressure tested for leaks to 2.5 times normal operating pressure

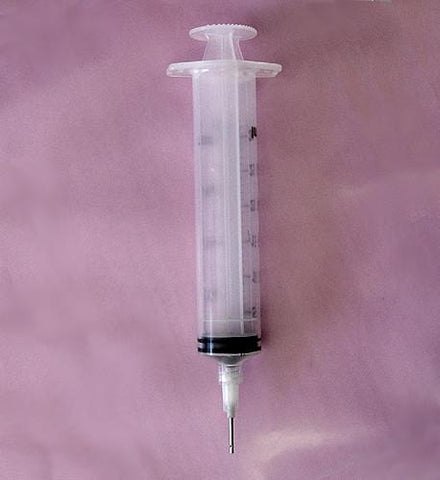

  • The kit Includes a purging tool for ink tube priming
  • Illustrated installation instructions are in the box
  • 1 year replacement warranty

System error related to the ink tube system:

  • Error 93:10

Please see VIDEO TUTORIAL: Designjet Ink Tube System Replacement

Designjet 500, 800 42" Tube System C7769-40180, C7769-40046
