Designjet 500, 510, 800 Drive Roller Encoder Sensor with Disk C7769-60384, C7769-60254

Designjet 500, 510, 800 Drive Roller Encoder Sensor with Disk C7769-60384, C7769-60254

  • $ 5920

HP Designjet 500, 510, 800 Drive Roller Encoder Sensor and Disk

Condition: Refurbished, Live-tested

Warranty: 12 months

The replacement procedure for this part is found in section 8-38 of the service manual --available here.

C7769-60384

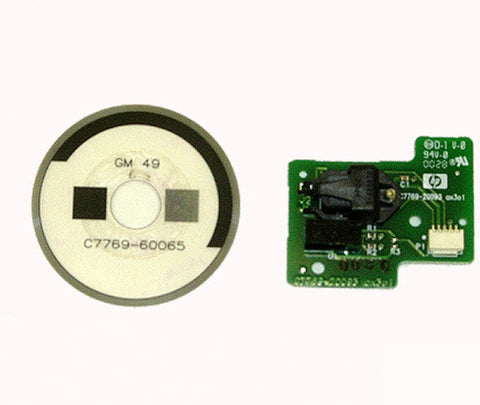

Encoder sensor assembly that tracks paper position during printing and calibration. Includes encoder disk. This is a refurbished part. 1 Year Warranty.

System errors related to the drive roller encoder sensor:

  • Error 56:10
  • Error 56:13
  • Error 81:01
  • Error 81:11
  • Error 85:10
