HP Designjet T7100, Z6200 Carriage (Complete Assembly) CQ109-67011
- ✓ Same-day shipping from the USA
- ✓ Free technical support
- ✓ Veteran-owned US company
Part number: CQ109-67011
Refurbished, complete carriage assembly for the HP Designjet T7100 and Z6200.
At a glance
- Condition: Refurbished, tested
- Warranty: 12 months
Fits
- HP Designjet T7100
- HP Designjet Z6200
Need help diagnosing?
Not sure if your symptom is caused by this part? Contact our technical support experts at sales@lpscomputer.com or call 760 749 1580.
Options
- Z6200
- T7100

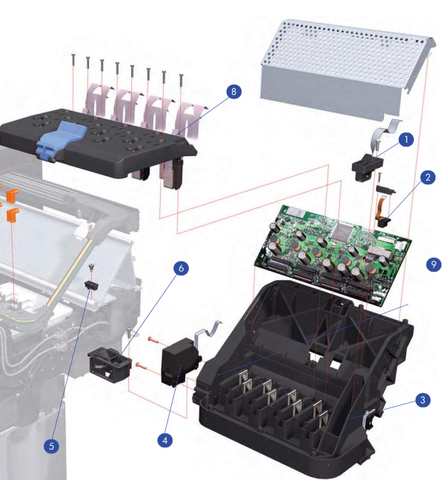

What's included
- Carriage frame with rail bushings (Q1273-60231)
- Printhead cover with flex cables (Q6651-60337)
- Edge detector (CQ105-60130)
- Carriage PCA (CQ109-67034)
- Encoder sensor (Q1273-60239)
Not included
Cutter assembly and color sensor (ESP). Reuse yours.
Installation
The replacement procedure can be found in the "removal and installation" section of the service manual for your printer:
Returns
30-day return window. See our returns policy for details.
