Designjet 5500 RTL Hard Disk Drive Kit Q1251-60067, Q1251-60323, Q1251-60090
- ✓ Same-day shipping from the USA
- ✓ Free technical support
- ✓ Veteran-owned US company
Part number: Q1251-60323 (replaces Q1251-69306, Q1251-60306, Q1251-60284, Q1251-60282; also Q1251-60067, Q1251-60090)
Hard disk drive kit for the HP Designjet 5500 RTL (non-PostScript). The drive holds the software, firmware and settings, and allows queuing and nesting.
At a glance
- Condition: New
- Warranty: Lifetime warranty (replace or refund)
Fits
- HP Designjet 5500 (RTL, non-PostScript)
Symptoms this fixes
System errors related to the hard disk drive:
- Error 1f500XX boot fail (can also be caused by a failing power supply unit)
- Error e50000

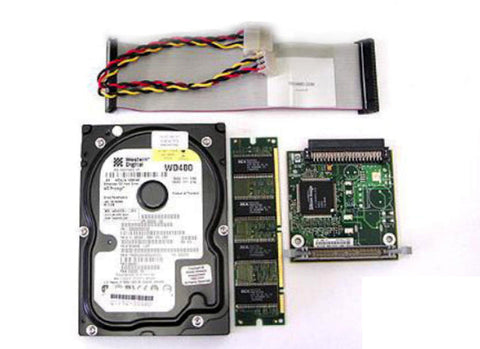

What's included
- 40GB hard disk drive with software preloaded
- Matching boot ROM
- Adapter PCB
- Required cables
Note: The boot ROM must match the hard disk firmware revision, or the printer will not boot. This kit includes a matched set.
Installation
The replacement procedure is in sections 8-70 and 8-73 of the HP Designjet 5000 / 5500 service manual.
Returns
30-day return window. See our returns policy for details.
