Part number: C7769-60182

24-inch Designjet 500 / 510 / 800 carriage belt Kit Light: an LPS brand belt with the tools you need for the job. LPS brand belts are made in the USA from DuPont Kevlar-reinforced, high-density polyurethane. They are precision manufactured and self-lubricating for the best image quality.

At a glance

• Condition: New, LPS brand
• Warranty: Lifetime warranty on the belt

Fits

• HP Designjet 500 24-inch (C7769B)
• HP Designjet 500PS 24-inch (C7769C)
• HP Designjet 500 Plus 24-inch (C7769F)
• HP Designjet 500 Mono 24-inch (C7769E)
• HP Designjet 510 24-inch (CH336A)
• HP Designjet 510ps 24-inch (CJ996A)
• HP Designjet 800 24-inch (C7779B)
• HP Designjet 800PS 24-inch (C7779C)

Symptoms this fixes

Common signs that the belt needs replacing:

• System error 86:01 (a worn belt is the main cause on every Designjet)

Options

• Service manual on compact disc
• Service manual on USB drive (small extra charge)

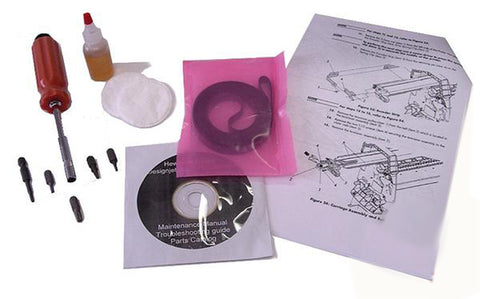

What's included

• LPS carriage belt
• Magnetic 1/4-inch drive bit-holding screwdriver
• Torx bits: T8, T10, T15, T20 and T25
• Carriage rail oil
• Service manual (CD or USB drive, your choice)

Note: For the paper advance calibration you need photo gloss or photo matte media. The media is not in the Kit Light; it is included in the full belt kit.

Note: Choose the belt by the maximum print width of your printer. The belt itself is longer than the print width, so a 24-inch printer uses the "24-inch" belt even though the belt measures more than 24 inches.

Video and step-by-step guide

• Designjet 500 / 800 belt replacement video
• Designjet 500 / 800 belt replacement guide

Installation

With average mechanical skills you can replace the belt and calibrate the printer in 1 to 3 hours. Allow 2 to 4 hours the first time through.

The replacement procedure can be found in the "removal and installation" section of the service manual: HP Designjet 500 / 800 service manual.

Returns

30-day return window. See our returns policy for details.
