Part number: Q5669-60673

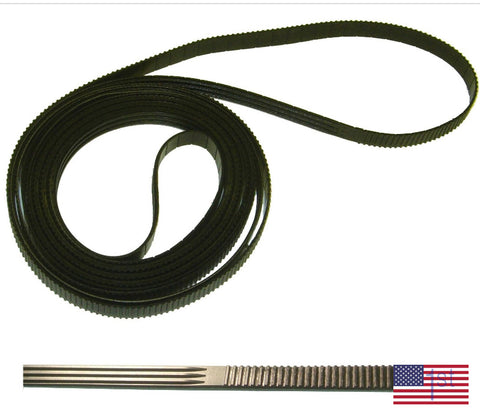

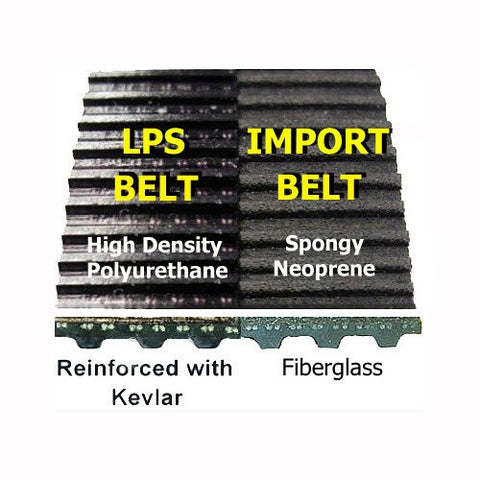

24-inch Designjet T610 / T620 / T1100 / T1120 carriage belt Kit Light: an LPS brand belt with the tools you need for the job. LPS brand belts are made in the USA from DuPont Kevlar-reinforced, high-density polyurethane. They are precision manufactured and self-lubricating for the best image quality.

At a glance

• Condition: New, LPS brand
• Warranty: Lifetime warranty on the belt

Fits

• HP Designjet T610 24-inch (Q6711A)
• HP Designjet T620 24-inch (CK835A)
• HP Designjet T1100 24-inch (Q6683A)
• HP Designjet T1100ps 24-inch (Q6684A)
• HP Designjet T1120 24-inch (CK837A)
• HP Designjet T1120ps 24-inch (CK838A)

Symptoms this fixes

Common signs that the belt needs replacing:

• System error 86:01 (a worn belt is the main cause on every Designjet)

Options

• Service manual on compact disc
• Service manual on USB drive (small extra charge)

What's included

• LPS carriage belt
• Magnetic 1/4-inch drive bit-holding screwdriver
• Torx bits: T8, T10, T15, T20 and T25

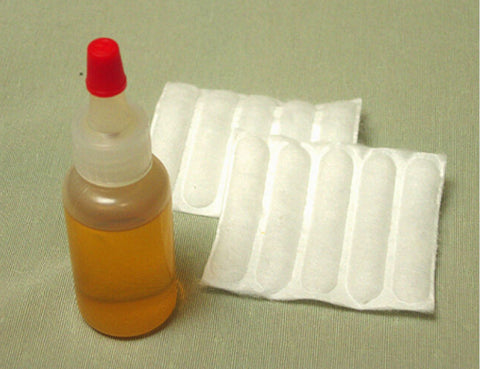

• Carriage rail oil
• Service manual (CD or USB drive, your choice)

Note: For the paper advance calibration you need photo gloss or photo matte media. The media is not in the Kit Light; it is included in the full belt kit.

Note: Choose the belt by the maximum print width of your printer. The belt itself is longer than the print width, so a 24-inch printer uses the "24-inch" belt even though the belt measures more than 24 inches.

Video and step-by-step guide

• Designjet T610 / T1100 / Z2100 / Z3100 belt replacement guide

Installation

With average mechanical skills you can replace the belt and calibrate the printer in 1 to 3 hours. Allow 2 to 4 hours the first time through.

The replacement procedure can be found in the "removal and installation" section of the service manual: HP Designjet T1100 / T610 service manual.

Returns

30-day return window. See our returns policy for details.
