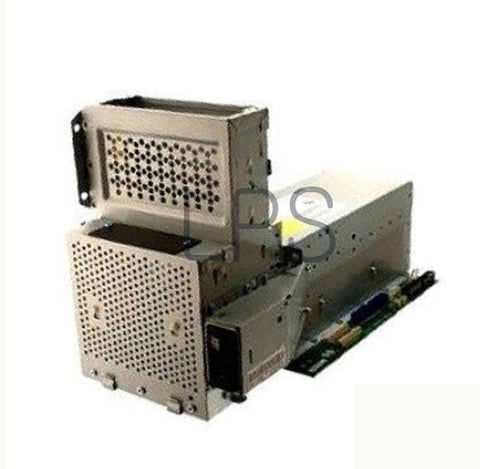

Designjet T610, T1100 24" Main PCA & Power Supply Q6683-60192

Part number: Q6683-60192 (also Q6683-67024)

Refurbished complete power supply and main logic board for 24-inch HP Designjet T610 and T1100 printers. The formatter board plugs into this unit.

At a glance

• Condition: Refurbished, live-tested, with a new fan installed in the power supply
• Warranty: 12 months

Fits

• HP Designjet T610 24-inch
• HP Designjet T1100 24-inch (including PostScript)

Symptoms this fixes

System errors related to the main PCA and power supply:

• Error 01.0:YZ
• Error 02.1:YZ (primary cause: a faulty carriage PCA)
• Error 03:10
• Error 08:11 (primary cause: a faulty formatter or a pinched control panel ribbon cable)

Not included

Formatter board. The formatter is always a separate component from the power supply and the main PCA. Reuse yours.

Note: This is the complete assembly: main logic board (engine PCA) and power supply together.

Installation

The replacement procedure is in section 6-202 of the HP Designjet T1100 / T610 service manual.

Returns

30-day return window. See our returns policy for details.
