HP DESIGNJET 500, 800 Carriage Belt Kit (42" plotters) C7770-60014

  • $ 10200


HP DESIGNJET 500, 800 Carriage Belt Kit (42" plotters)

LPS Brand Designjet Belts are the ONLY Belts Made in the USA

LPS Never Sells any Products Made by Forced Labor

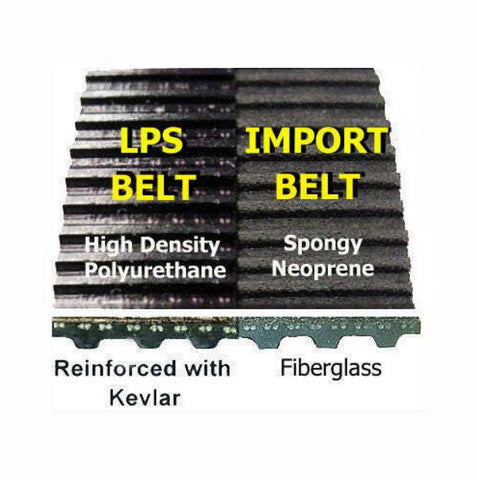

LPS Designjet Belts are the Best in the World
DuPont Kevlar
High-Density Polyurethane
Precision Manufacturing
Lifetime Warranty
Free Shipping (USA)
Designjet 500 belt replacement video

Thousands of these belts and kits have been delivered to Designjet owners and end users all over the world who used them to fix their plotters, each saving hundreds of dollars on the repair.

With average mechanical skills you can replace the belt and calibrate the printer in 1-3 hours. If you get stuck, you can call LPS Computer for technical assistance.

Watch our tutorial videos on YouTube to see the entire repair procedure. Search on YouTube " Designjet repair LPS".

A worn belt is the main cause of System Error 86:01.

The kit has everything you need to do the job right:

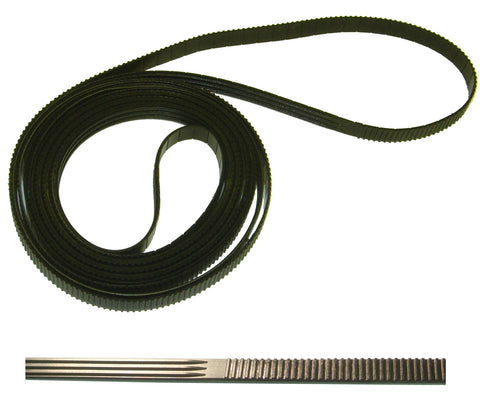

  • Precision Self Lubricating Carriage Belt For Best Image Quality

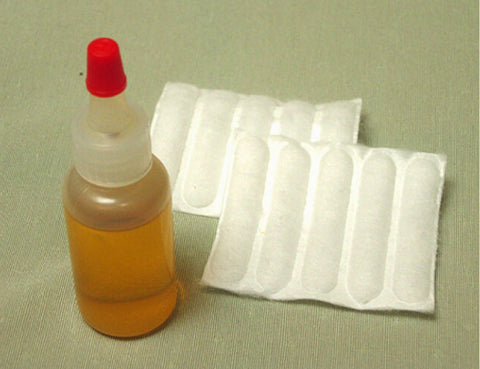

  • Non-evaporating oil for the carriage rails

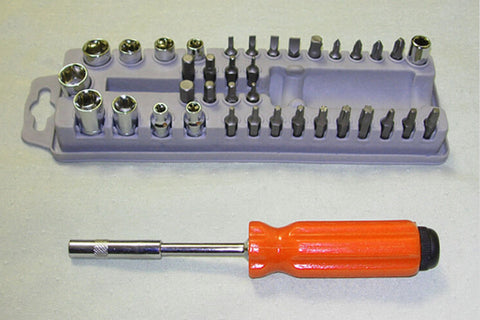

  • 39 Piece Tool Kit

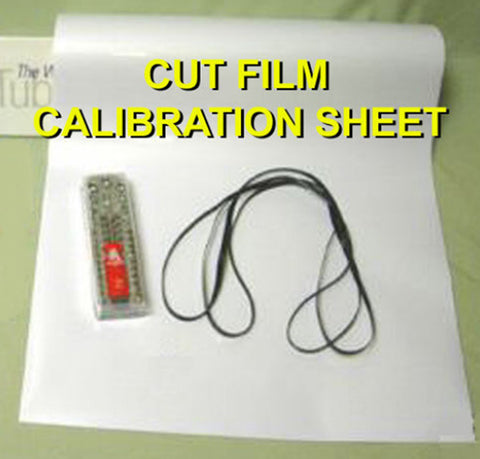

  • Photo Gloss Film required by HP for Calibration

  • Illustrated belt replacement and plotter calibration directions

  • Complete Service Manual with Illustrated Replacement instructions, Parts List, Error Codes, & more (CD or USB Drive --your choice)

  • Expert Help Available if Needed (with kit)

  • Same day shipping

  • Free Shipping - USA only

  • Veteran Owned Company

Illustrated, step-by-step instructions take you from cover removal to full repair of your plotter. All specialty tools necessary for the task are included in the kit. The tools can be used for future repairs as well.

BEFORE YOU ORDER: Please make sure you select the right length of belt. See the plotter image with this ad to determine the correct belt length for your plotter.

FAQ
1. How difficult is it to replace the carriage belt?
If you have average mechanical skills, and the instructions are followed, most people can replace the belt and calibrate the printer without calling for technical assistance. If you have apprehensions about doing the replacement yourself, perhaps you can find another person with technical skills to help you.

2. How long will it take to replace the belt?
An experienced technician can do the work in less than an hour. Allow yourself 2 to 4 hours for the first time through.

NASA, JPL, The Goddard Space Center, the US Navy, Army, Marines and many universities buy LPS belt kits. They trust us and you can too.

    Compatible with:

    • HP DesignJet 500 Printer - 42” Model (P/N C7770B)

    • HP DesignJet 500PS Printer - 42” Model (P/N C7770C)

    • HP DesignJet 500Plus – 42” Model (P/N C7770F)

    • HP DesignJet 500Mono – 42” Model (P/N C7770E)

    • HP Designjet 510 – 42” Model (P/N CH337A)

    • HP Designjet 510ps – 42” Model (P/N CJ997A)

    • HP DesignJet 800 Printer - 42” Model (P/N C7780B)

    • HP DesignJet 800PS Printer - 42” Model (P/N C7780C)


    We Also Recommend

    Customer Reviews

    Based on 3 reviews Write a review

    Customer Reviews

    Based on 245 reviews
    92%
    (226)
    8%
    (19)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    T
    TABITHA MILLS

    HP DESIGNJET 500, 800 Carriage Belt Kit (42" plotters) C7770-60014

    S
    S.B. Gray
    Designjet Belt Replacement

    My HP800 Designjet needed a new belt. LPS provided everything needed and instructions. Delivery was quick and installation was easy. Plotter works like new now.

    K
    Karl Pritchard
    HP Design Jet 500 Drive Belt purchase and replacement

    You guys provide a great product. Being able to purchase parts to service my aging plotter is fantastic! Your tutorial's give one the confidence to attempt and complete the repairs.
    This is the second belt I have replaced but I think the lack of longevity for the first one is because the plotter doesn't get used much.
    I've also replaced the pens service station.
    Again, thank you for the great products.
    Thank you
    Karl Pritchard
    Jersen Construction Group

    G
    Gary Forkes
    DesignJet 500 Belt Replacement

    i recently replaced the belt on my DesignJet 500 using your kit. The video was extremely helpful, and the printer is back in full service.

    Only minor problem was shipping to Canada via UPS. UPS charge $40 CAD to clear the shipment through customs, in addition to any applicable duty or taxes.. You might consider offering the option to ship via USPS. When the goods clear customers Canada Post will require payment of the same duty and taxes, but they do not charge a fee. Apologies if you do offer USPS and I just missed it.

    E
    Elizabeth Kristoffersen
    Great business

    The order arrived promptly. Kit was complete. I watched the video instructions on YouTube instead of the included CD. Very helpfull.
