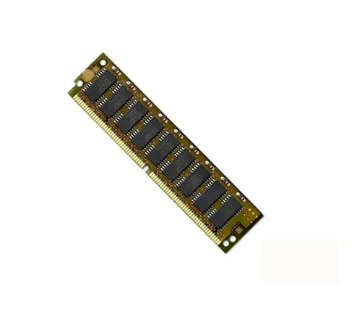

The plotter started up fully, only after running its normal self-test in the beginning and then started printing.  Otherwise it will get nearly all the way through the self test, and just continue in a loop, restarting and doing another self test, over and over and over.  From my online research, it sounds like either the logic board or something worse.  I really don’t want to spend the money on it having it serviced by a local technician, as it is an older plotter.  Thoughts? Thanks, Matt Franks Since this is an intermittent problem and the plotter has a few...

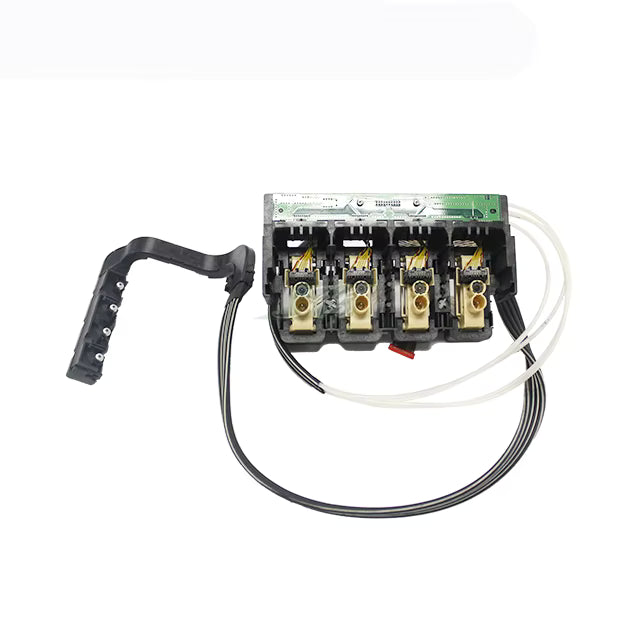

Cyan is leaking hard from the carriage assembly. The ink is all over the paper, platen, service station and cartridges. The printer will be needing a major cleaning because of all the ink. I believe it is the ink tube system. Printheads and cartridges are over 10 years old but seems to be working okay. The cyan printhead was replaced but the problem remains. I will be needing your ink tube system. I don't think it is the cartridge assembly. What are your thoughts. The printer will be needing a major cleaning because of all the ink. Sorry to hear...

MY 1050c started showing black ink spots on prints and I am seeing a lot of black ink leaking in the cleaner compartment. Would the ink tube kit be the fix for this problem? Are there other issues I should look for? I don’t want to just start throwing parts at it. Thanks for any insight you can provide. Allen Aubuchon There are seals between the print head ports and the tubes themselves that are made of synthetic rubber.  They harden, crack and lead after a few years.  Replacing the tube system will solve the problem.  A note of caution… ...

I have a 1055cm plus on power up it goes to audible alarm no display on led panel any ideas??? Thanks Marty The PCI bus on the main logic board is not relaying boot information from the ROM.  The ROM may be missing, the memory may be missing, the JetDirect card may be holding the bus down, or the HDD may be holding it down.  If the ROM and memory are present, remove the HDD and Jetdirect from the machine.  If the problem persists, replace the logic board.

Any time the Designjet 1050C trailing cables are disconnected and reconnected because of a carriage replacement, belt replacement, trailing cable replacement or main logic PCB replacement, the resistance check MUST be made or risk blowing F7 or the main logic board itself. AFTER the trailing cables are attached, you need to read at least 100 ohms across the test points (more typically closer to 1000 ohms). The resistance will be moving and that is normal.  Zero ohms means a short and the trailing cables will need to be reseated.  HP put the ground and +5VDC .030” apart on the connector and...
