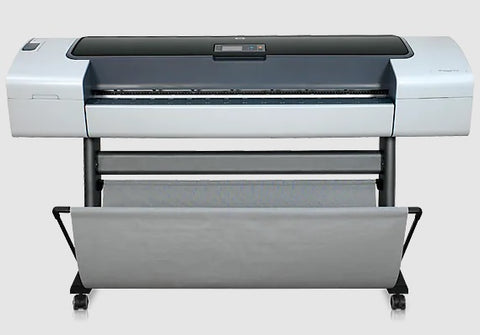

Designjet T1120 44" Printer
CALL TO ARRANGE SHIPPING: 760-749-1580
Everything you need to get printing!
- Paper spindle
- USB Cable to Connect to Your PC
- Floor Stand
- Set of Ink Cartridges
- Brand New LPS Brand Belt
- Reconditioned Service Station
- 3-Month Warranty (extended warranty options available)
- FREE Local Pickup in San Diego County
Cosmetic: 90%
Function: 100%
Functional specifications
|
Printheads
|
Two inks in each printhead: gray and photo black, matte black and yellow, and magenta and cyan
|
|
Ink cartridges
|
Cartridges containing 69 ml of ink: gray, photo black, yellow, magenta, and cyan
Cartridges containing 130 ml of ink: gray, photo black, matte black, yellow, magenta, and cyan
|
|
|
Minimum
|
Maximum
|
|
Roll Width
|
11 inches (279 mm)
|
24-inch printer: 24 inches (609 mm)
44-inch printer: 44 inches (1118 mm)
|
|
Roll Length
|
|
300 feet (91.4 m)
|
|
Sheet Width
|
8.3 inches (210 mm, A4 Portrait)
|
24-inch printer: 24 inches (609 mm)
44-inch printer: 44 inches (1118 mm)
|
|
Sheet Length
|
11 inches (279 mm, Letter Portrait)
|
24-inch printer: 36 inches (915 mm)
44-inch printer: 66 inches (1676.4 mm)
|
|
Print-quality
|
Maximum detail
|
Drive
|
Rendering Resolution (ppi)
|
Printing Resolution (dpi)
|
|
Best
|
On
Off
|
Any
Any
|
1200 × 1200
1200 × 1200
600 × 600
|
2400 × 1200 (glossy paper only)
1200 × 1200 (any other paper type)
600 × 600
|
|
Normal
|
On
Off
|
Any
HP-GL/2
PostScript
|
600 × 600
600 × 600
300 × 300
|
600 × 600
600 × 600
600 × 600
|
|
Fast
|
On
Off
|
Any
HP-GL/2
PostScript
|
600 × 600
600 × 600 (1)
300 × 300
|
600 × 600
600 × 600 (2)
600 × 600 (2)
|
*For a list of supported glossy paper, see Order paper.
|
Top right and left margins
|
5 mm = 0.2 inches
|
|
Bottom margin (trailing edge)
|
5 mm = 0.2 inches (roll)
17 mm = 0.67 inches (sheet)
|
|
±0.1% of the specified vector length or ±0.1 mm (whichever is greater) at 23°C (73°F), 50-60% relative humidity, on E/A0 printing material in Best or Normal mode with HP Matte Film roll feed.
|
|
HP PCL3 GUI, HP GL/2 RTL, CALS/G4, PDF (HP Designjet T1120ps only), PostScript (HP Designjet T1120ps only), TIFF (HP Designjet T1120ps only), JPEG (HP Designjet T1120ps only)
|
Physical specifications
|
24-inch printer
|
24-inch printer (without stand)
|
44-inch printer
|
|
|
Weight
|
143 lb (65 kg)
|
103.6 lb (47 kg)
|
189 lb (86 kg)
|
|
Width
|
49.7 inches (1262 mm)
|
49.7 inches (1262 mm)
|
69.7 inches (1770 mm)
|
|
Depth
|
Minimum: 26 inches (661 mm)
Maximum: 28.8 inches (732 mm)
|
Minimum: 26 inches (661 mm)
Maximum: 28.8 inches (732 mm)
|
Minimum: 26 inches (661 mm)
Maximum: 28.8 inches (732 mm)
|
|
Height
|
41.2 inches (1047 mm)
|
15.4 inches (391 mm)
|
41.2 inches (1047 mm)
|
Memory specifications
|
HP Designjet T1120 Memory (DRAM) supplied
|
384 MB
|
|
HP Designjet T1120ps Memory (DRAM) supplied
|
320 MB
|
|
Hard disk
|
80 GB
|
Power specifications
|
Source
|
100–240 V ac ±10%, auto-ranging
|
|
Frequency
|
50–60 Hz
|
|
Current
|
< 2 A
|
|
Consumption
|
< 200 W
|
Ecological specifications
This product complies with European Union WEEE and RoHS Directives. To determine the ENERGY STAR qualification status of these product models, please go to http://www.hp.com/go/energystar.
For the up-to-date ecological specifications of your printer, please go to http://www.hp.com/ and search for “ecological specifications”.
Environmental specifications
|
|
Temperature range
|
Humidity range
|
|
Operating for optimal print-quality
|
22°C to 26°C (72°F to 79°F)
|
30% to 60%
|
|
Operating for standard printing
|
15°C to 35°C (59°F to 95°F)
|
20% to 80%
|
|
Printer without consumables
|
5°C to 40°C (41°F to 104°F)
|
|
|
Non-operating packed consumables and printer:
|
-40°C to 60°C (-40°F to 140°F)
|
|
Acoustic specifications
Printer acoustic specifications (declared according to ISO 9296).
|
Idle sound power level
|
4.4 B (A)
|
|
Operating sound power level
|
6.9 B (A)
|
|
Idle sound pressure at bystander
|
29 dB (A)
|
|
Operating sound pressure at bystander
|
57 dB (A)
|
